Industrial Scientific Radius BZ1 Area Gas Monitor

Industrial Scientific Radius BZ1 Area Gas Monitor Overview

When it comes to choosing equipment to protect your worksite from hazardous gases, rely on the Radius™ BZ1 Area Monitor. No other area monitor protects your workers longer in the field with less setup, user training, and time in the shop.

Stop worrying about missing alarms. Stop stressing over equipment downtime. The Radius™ BZ1 is built to detect gas hazards 24/7 without the hassle of elaborate wireless setups and maintenance routines. Radius just works, no questions asked, so your teams can focus on what's important and be confident that their area monitors are ready for whatever comes their way.

Deploy Whenever and Wherever:

Whether setting up a perimeter, or monitoring leaks or confined spaces, the Radius BZ1 allows for flexible deployments to create buffers between workers and gas hazards.

Get the Message Loud and Clear:

Loud audible alarms and different coloured strobes for gas and non-gas events ensure workers not only know when the instrument is alarming, but why.

React With Confidence:

Identify gases and alarms from a safe distance, and read critical safety messages such as "EVACUATE" or "VENTILATE," thanks to a display that is three times larger than its nearest competitors'.

Know What is Happening Without Approaching:

Create wireless networks out of the box and receive real-time gas readings from other instruments thanks to LENS Wireless and its automatic, peer-to-peer mesh network.

Spend Less Time Managing Your Instruments:

Your instruments will spend more time in the field and less time in the shop thanks to a unique modular design, the DSX™ Docking Station, and patented DualSense ® Technology.

For more information on the Industrial Scientific Radius BZ1 Area Gas Monitor, contact your local Air-Met office.

Features

Industrial Scientific Radius BZ1 Area Gas Monitor Features

Features of the Radius BZ1

Detect up to seven gases using 18 sensor options including PID
Longest running area monitor with a typical run time of 7 days (168 hours)
Audible alarms sound at 108 dB at 1 m to cut through high-noise environments
LENS™ Wireless networks share alarms and data with no setup or infrastructure
Largest display of any area monitor on the market
Customisable alarm action messages such as "EVACUATE" or "VENTILATE"
DualSense ® Technology increases worker safety by using two sensors to detect the same gas
iNet ® and DSX™ Docking Station ready

Features of the LENS Wireless Highlights include:

No infrastructure required
Out-of-the-box operation
No need for IT setup
Self-forming, self-healing networks
Long-range communication up to 300m without sacrificing runtime
Peer readings display alarms and data from across the linked group

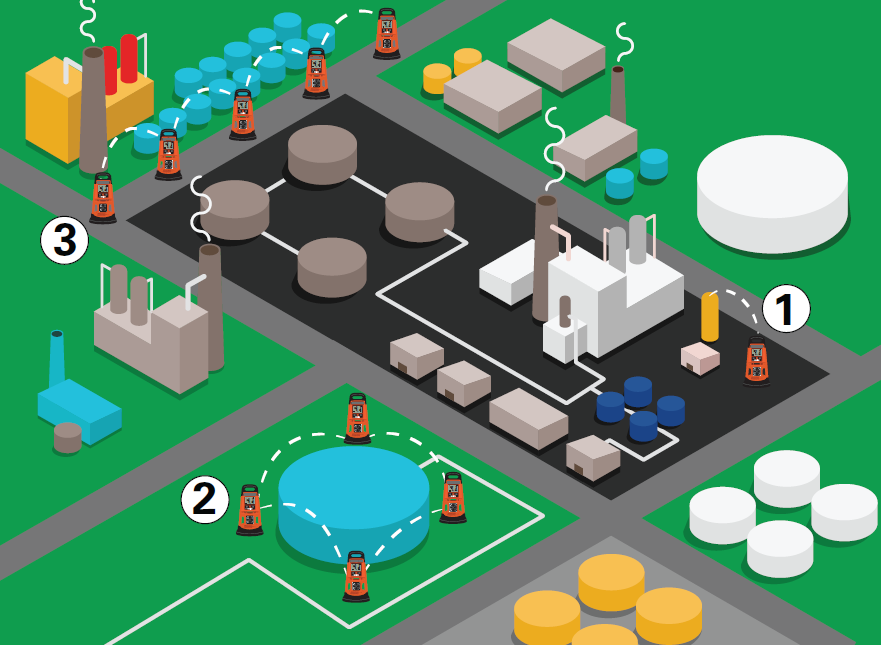

Confined Space Monitoring
Know what’s happening in a confined space by using the pumped SafeCore Module and tubing to draw air samples to the monitor.
Perimeter Monitoring
Set up monitors around a tank, hot work, or other known hazardous areas to continuously monitor for gas leaks.
Fence Line Monitoring
Create a barrier between a safe zone and hazardous work area. Use the hopping capability of LENS Wireless to know what is happening up to 1.5 km away.

Specifications

Industrial Scientific Radius BZ1 Area Gas Monitor Specifications

Radius BZ1 Specifications
Measuring Ranges	CATALYTIC BEAD Combustible Gases:	0-100% LEL in 1% increments
	ELECTROCHEMICAL Ammonia: Carbon Monoxide (CO): Carbon Monoxide (CO High Range): Carbon Monoxide (CO/H₂ Low): Carbon Monoxide/Hydrogen Sulfide: Chlorine (CL₂): Hydrogen (H₂): Hydrogen Sulfide (H₂S): Hydrogen Cyanide (HCN): Nitrogen Dioxide (NO₂): Oxygen (O₂): Sulfur Dioxide (SO₂):	0-500 ppm in 1 ppm increment 0-1,500 ppm in 1 ppm increments 0-9,999 ppm in 1 ppm increments 0-1,000 ppm in 1 ppm increments CO: 0-1,500 ppm in 1 ppm increments H₂S: 0-500 ppm in 0.1 ppm increments 0-50 ppm in 0.1 ppm increments 0-2,000 ppm in 1 ppm increments 0-500 ppm in 0.1 ppm increments 0.4-30 ppm in 0.1 ppm increments 0.4-30 ppm in 0.1 ppm increments 0-150 ppm in 0.1 ppm increments 0-30% vol in 0.1% increments 0-150 ppm in 0.1 ppm increments
	PHOTOIONISATION Volatile Organic Compounds (10.6eV):	0-2,000 ppm in 0.1 ppm increments
Pump	Optional integral pump, up to 30.48 m (100 ft) sample draw
Wireless (Optional LENS™ Wireless, proprietary mesh network)	Frequency: Max Peers: Range: Encryption: Approvals:	ISM license-free band (2.4 GHz) 25 devices per network group 10 independent, configurable network groups 300 m (~1,000 ft) line of sight AES-128 FCC Part 15, Others (see Industrial Scientific website for more details)
Certifications	UL: Class I, Division 1, Groups A, B, C, and D; T4 Class 1 Zone 0 AEx da ia IIC T4 Ga1 CSA: Class I, Division 1, Groups A, B, C, and D; T4 C22.2 No. 152 applies only to %LEL thermo-catalytic reading ATEX: Ex da ia IIC T4 Ga, Equipment Group and Category II 1G IECEx: Ex da ia IIC T4 Ga
Data Log	At least 3 months at 10-second intervals
Event Logging	60 alarm events
Ingress Protection	IP66
Case Material	Impact-resistant polycarbonate alloys
Dimensions	29 x 29 x 55 cm
Weight	7.5 kg
Temperature Range	-20 °C to 55 °C (-4 °F to 131 °F)
Humidity Range	15%-95% non-condensing (continuous)
Power Source/Run Time	(Rechargeable nickel-metal hydride (NiMH) battery pack)
	7 days (168 hours) typical @ 20 ºC, without pump, with wireless 3.5 days (84 hours) typical @ 20 ºC, with pump, with wireless 30 days (720 hours) typical @ 20 ºC, electrochemical sensors only, without pump, with wireless ≤8 hour recharge time
Alarms	108 decibel (dB) at 1 m (3.3 ft) redundant audible alarms Redundant, visual alarm LEDs (red and blue)
Sensors	Up to 6 sensors (catalytic bead, photoionisation detector, and electrochemical) Up to 7 simultaneous readings
