Geotech Water Level Meter + Temperature
A portable instrument designed to accurately measure water levels and temperature in monitoring wells and bore holes.
SKU
GEOWLMT
The Geotech Portable Water Level Meters + Temperature are designed to provide reliable and accurate measurements of groundwater levels and temperature. Readings are conveniently taken at the top of the casing with accuracy to within 1/100 of a foot and ± -0.5°C (temperature accuracy).
The sensor on the WLM consists of a stainless steel and PTFE probe attached to a reel-mounted, PVDF-coated engineer’s tape. The engineer's tape comes in standard or metric graduations, and is accurate to 1/100th of a foot, or 1 millimetre.

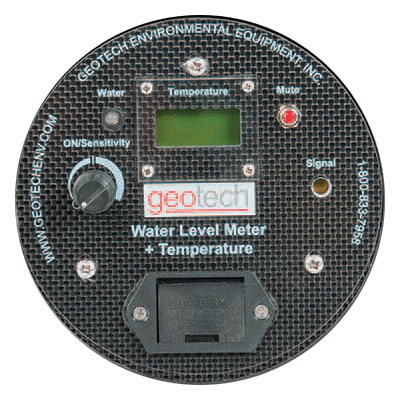

The sensor relies on fluid conductivity to determine the presence of water. An audible signal and visible blue LED activate when the probe contacts water, and there is a mute button to silent the signal while probing for temperature. The reel features adjustable conductivity sensitivity to prevent false triggering.
For more information, contact your local Air-Met office.
FEATURES
- Mounted on a lightweight steel and aluminum storage reel for easy transportation and durability in the field
- Highly accurate PVDF coated steel tape marked in engineering or metric increments
- Field replaceable 5/8" (1.59cm) probe with stainless steel conductors for durability
- Adjustable sensitivity to prevent false triggering
- Audible and visible alarms activated when the probe makes contact with water
- Easily replaced 9 volt battery
- Water resistant padded carrying case to protect instrument (optional)
- Optional tape weight helps sink probe into a deep or crooked well
| Geotech Portable Water Level Meters + Temperature Specification | ||
|---|---|---|
| Size | 100'-500' Reel |
15" H x 11.5" W x 10.5" D
(38cm H x 29cm W x 27cm D)
|
| 750'-1000' Reel |
15" H x 11.5" W x 14.5" D
(38cm H x 29cm W x 37cm D)
|
|
| Probe | 5/8" O.D. x 61/8" L (1.59cm O.D. x 15.56cm L) | |
| Length & Weight | 30m 60m 100m 150m 225m 300m |
6.4kg 7.3kg 18.2kg 9.1kg 10.9kg 12.7kg |
| Accuracy | Tape | 100th of a foot/100' |
| Temperature Sensor | ± 1°F (0.5°C) | |
| Material | Reel Tape Probe |
Powder coated steel and aluminum
PVDF coated steel
PTFE and stainless steel
|
| Power | 9 Volt DC alkaline battery | |
| Alarm | Audible and visual | |
| Warranty | 1 year | |
| Certifications | CE Rated | |
- Monitoring wells
- Monitoring boreholes
